Pobierz kartę katalogową

Niszczarka przemysłowa DIS

Opis

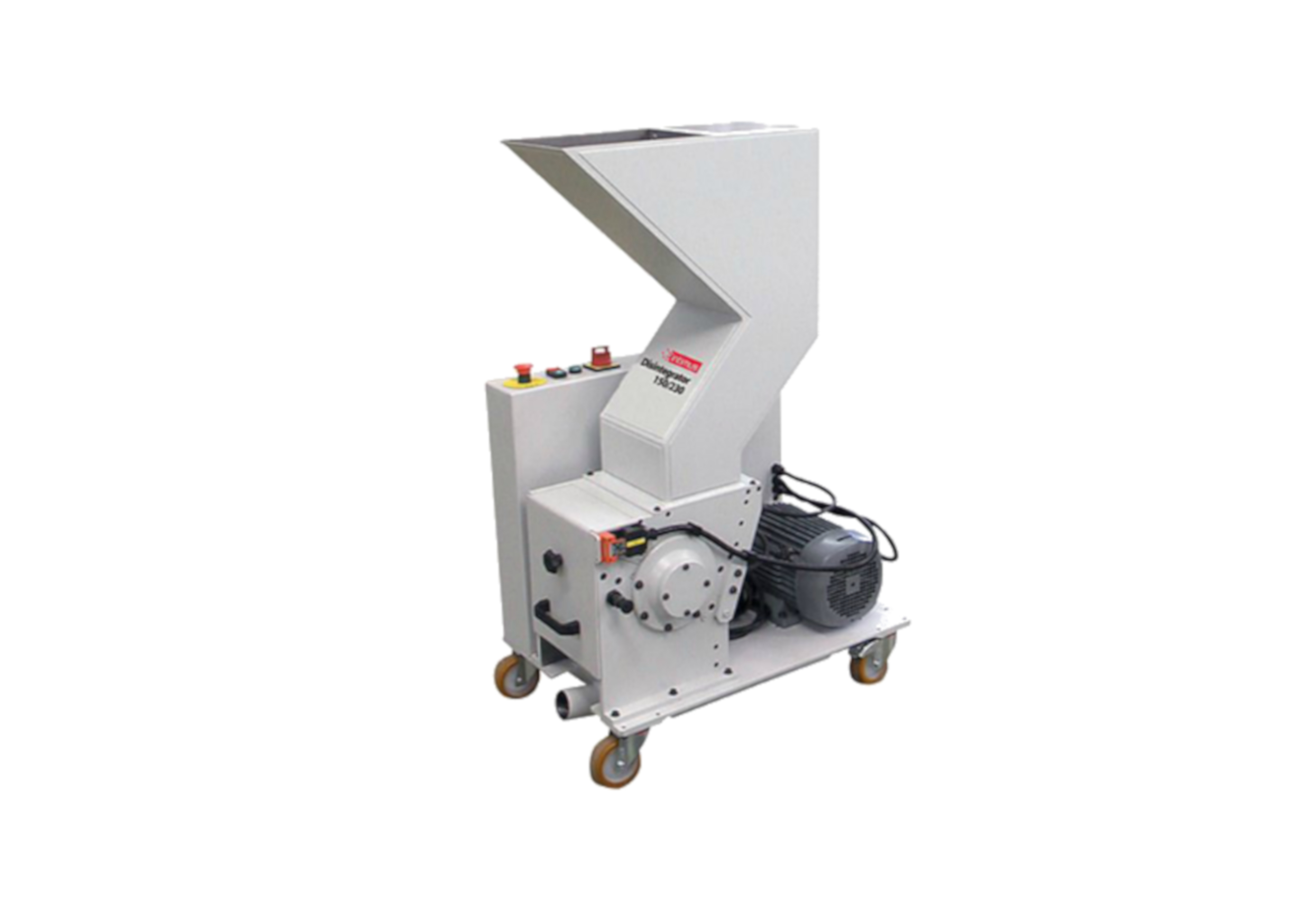

DIS 150/230

Based on proven technology, the intimus DIS 150/230 disintegrator is perfectly adapted for the reliable and economical shredding of paper and plastics in the form of paper documents, printed valuables such as banknotes or passports, magnetic media such as plastic cards or floppy disks as well as optical media such as CDs or DVDs.

The higher the security requirements, the smaller the particles the material must be shredded into. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The DIS 150/230 meets the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 230 mm feed opening; suitable for all standard computer formats and DIN format A4
  • Long life time: Knifes can be re-sharpened several times
  • Service-friendly through easy access milling chamber

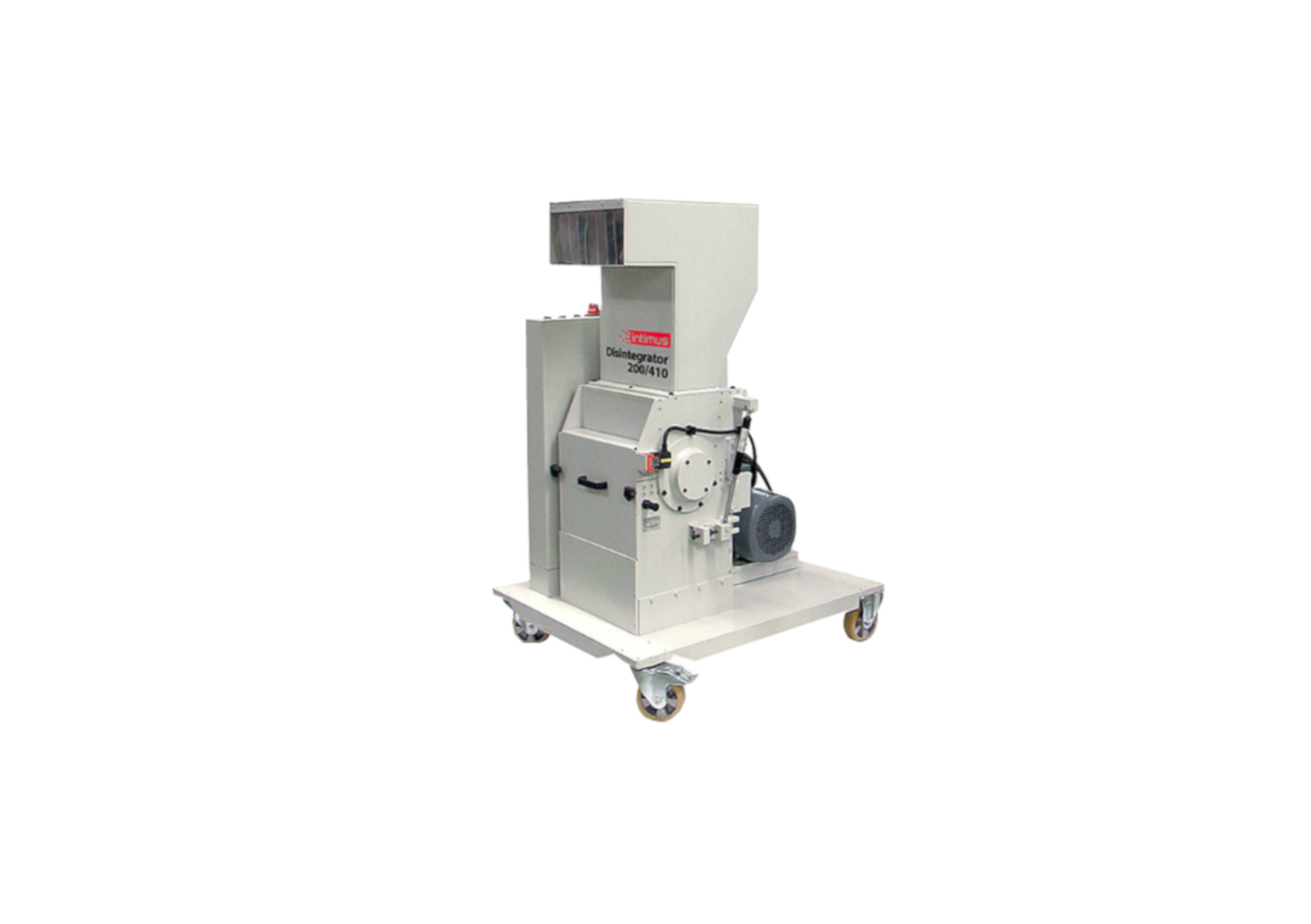

DIS 200/410

Based on proven technology, the intimus DIS 200/410 disintegrator is perfectly adapted for the reliable and economical shredding of paper and plastics in the form of paper documents, printed valuables such as banknotes or passports, magnetic media such as plastic cards or floppy disks as well as optical media such as CDs or DVDs.

The higher the security requirements, the smaller the particles the material must be shredded into. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The DIS 200/410 meet the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 410 mm feed opening; suitable for all standard computer formats and DIN format A3
  • Long life time: Knifes can be re-sharpened several times
  • Service-friendly through easy access milling chamber

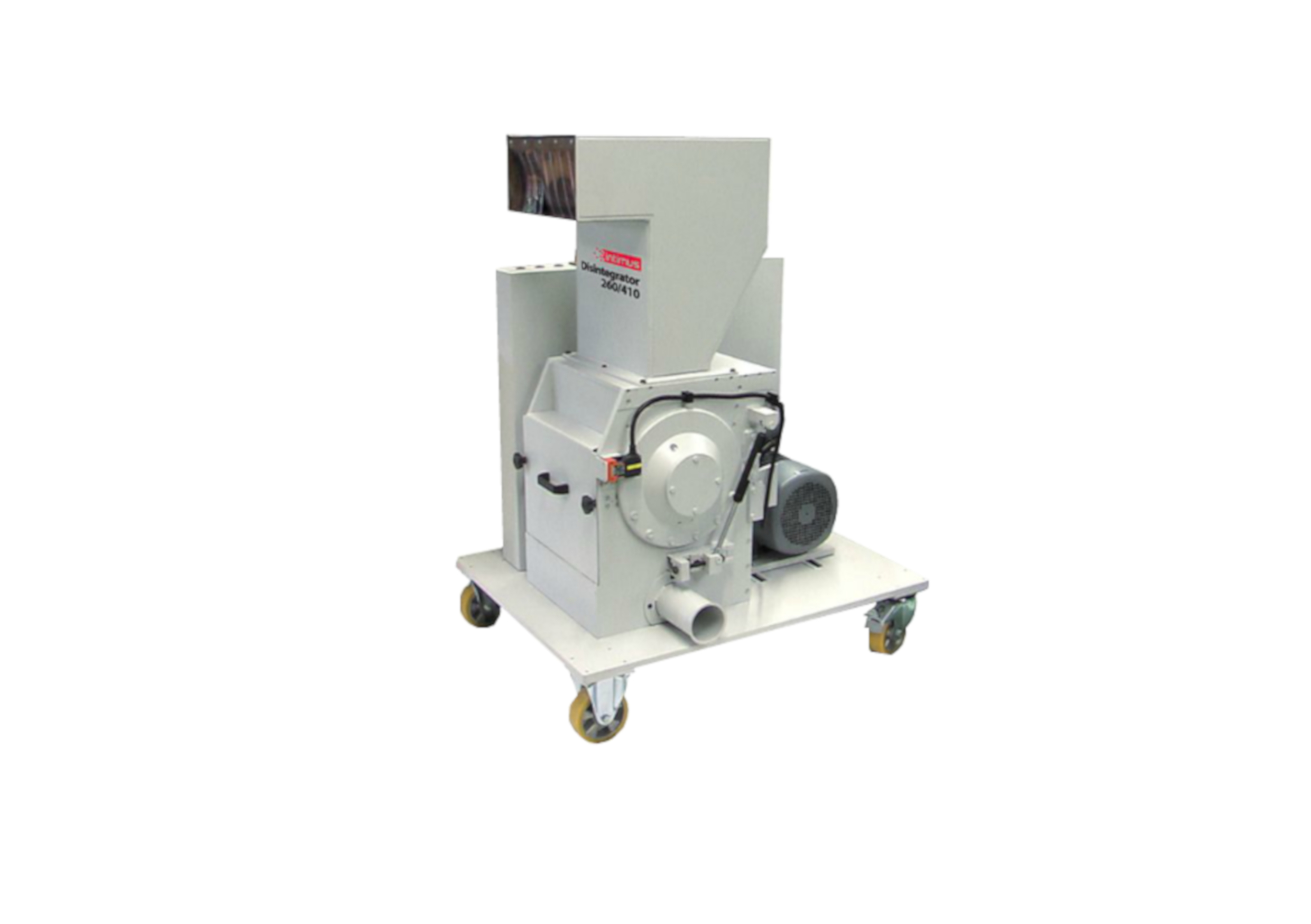

DIS 260/410

The higher the security requirements, the smaller the particles the material must be shredded into. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The intimus DIS 260/410 meets the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

Based on proven technology, the DIS 260/410 is perfectly adapted for the reliable and economical shredding of paper and plastics in the form of paper documents, printed valuables such as banknotes or passports, magnetic media such as plastic cards or floppy disks as well as optical media such as CDs or DVDs.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 410 mm feed opening; suitable for all standard computer formats and DIN format A3
  • Long life time: Knifes can be re-sharpened several times
  • Service-friendly through easy access milling chamber

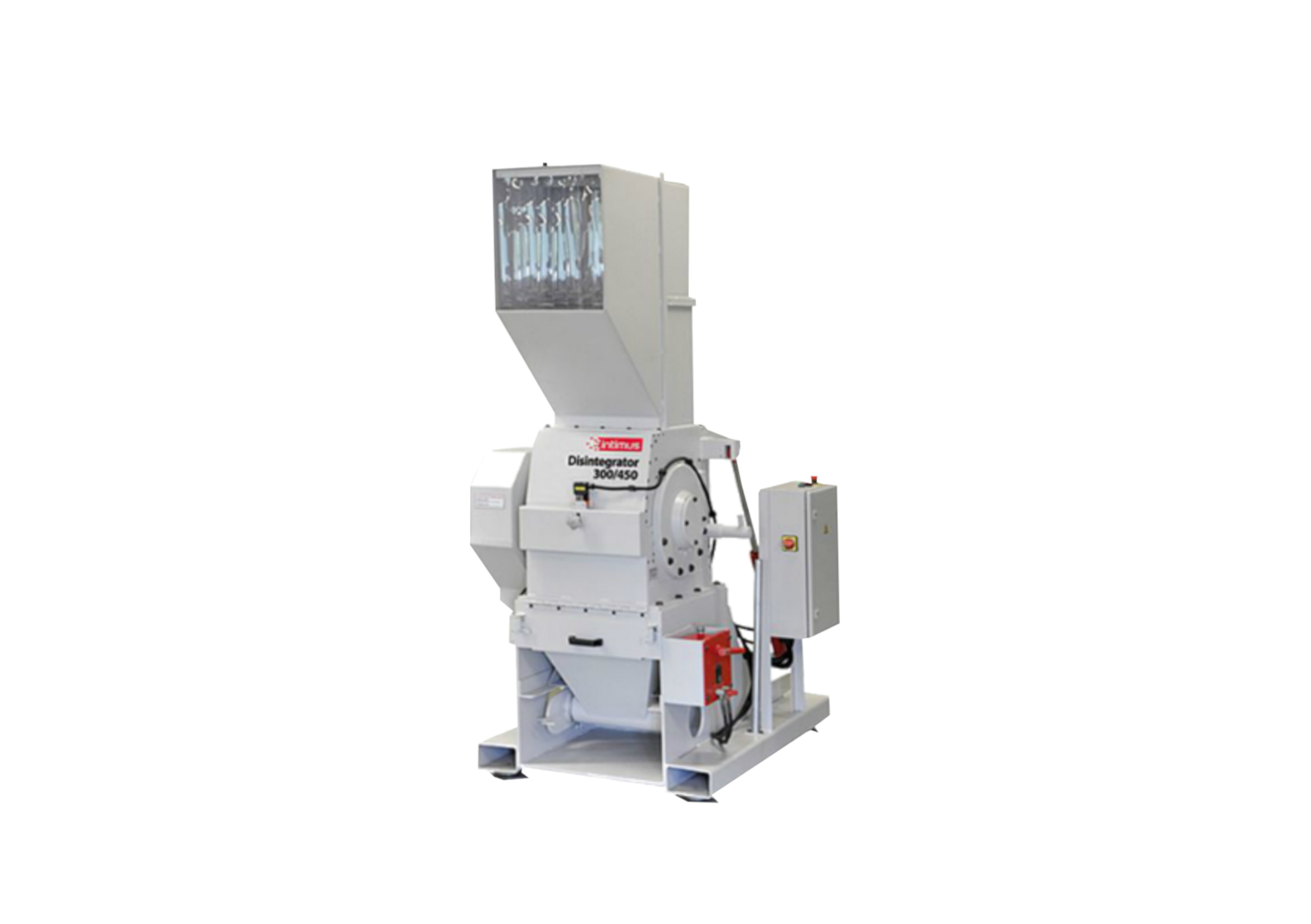

DIS 300/450

Based on proven technology, the intimus DIS 300/450 disintegrator is perfectly adapted for the reliable and economical shredding of paper and plastics in the form of paper documents, printed valuables such as banknotes or passports, magnetic media such as plastic cards or floppy disks as well as optical media such as CDs or DVDs.

The higher the security requirements, the smaller the particles the material must be shredded into. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The disintegrators meet the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 450 / 600 mm feed opening; suitable for all standard computer formats and
  • DIN format A2 / A1
  • Long life time: Knifes can be re-sharpened several times
  • Service-friendly through easy access milling chamber

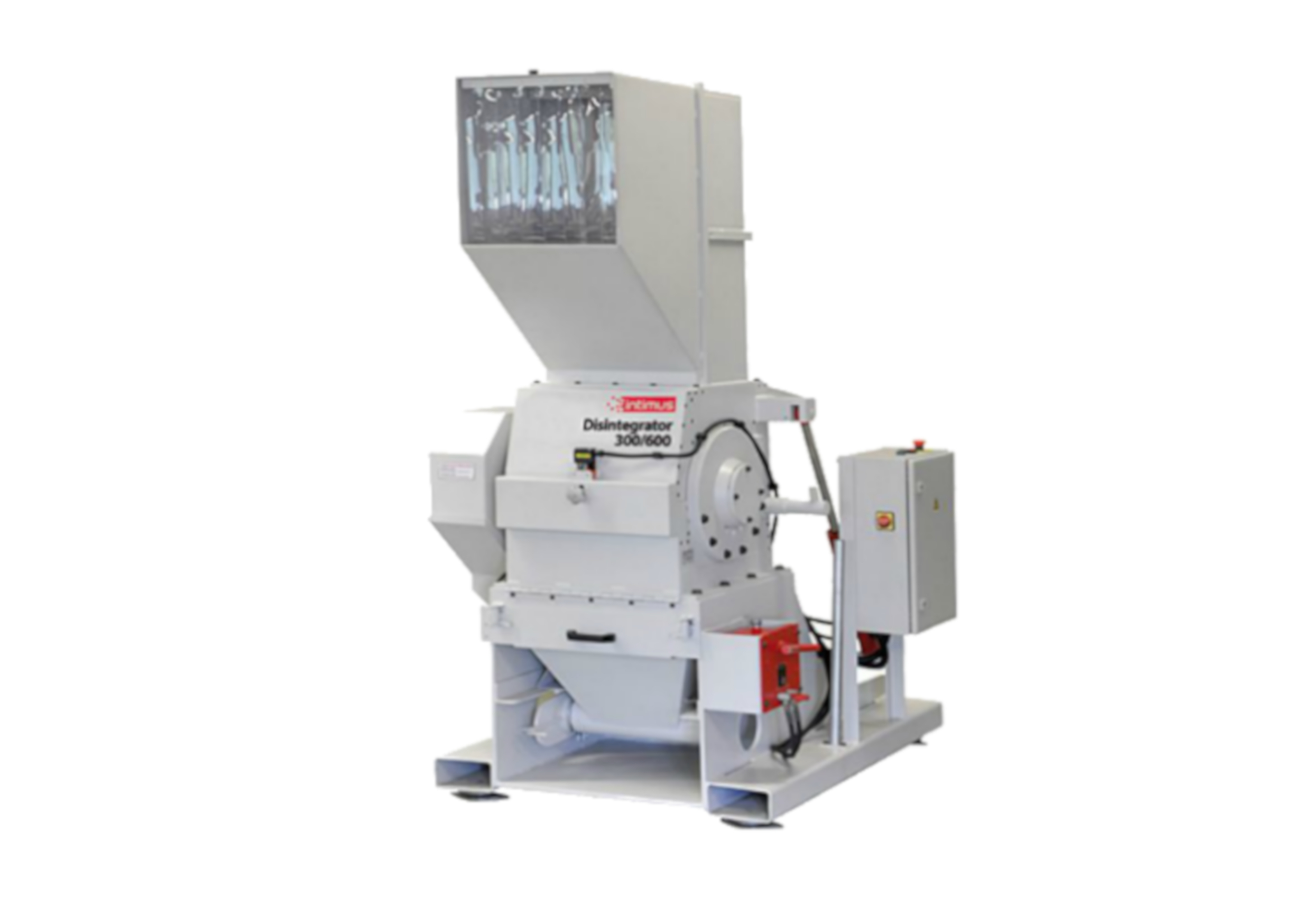

DIS 300/600

The intimus DIS 300/600 allows users to easily adjust the shred size in order to accommodate more stringent security requirements, reducing shred particle size. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The disintegrators meet the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 450 / 600 mm feed opening; suitable for all standard computer formats and
  • DIN format A2 / A1
  • Long life time: Knifes can be re-sharpened several times
  • Service-friendly through easy access milling chamber

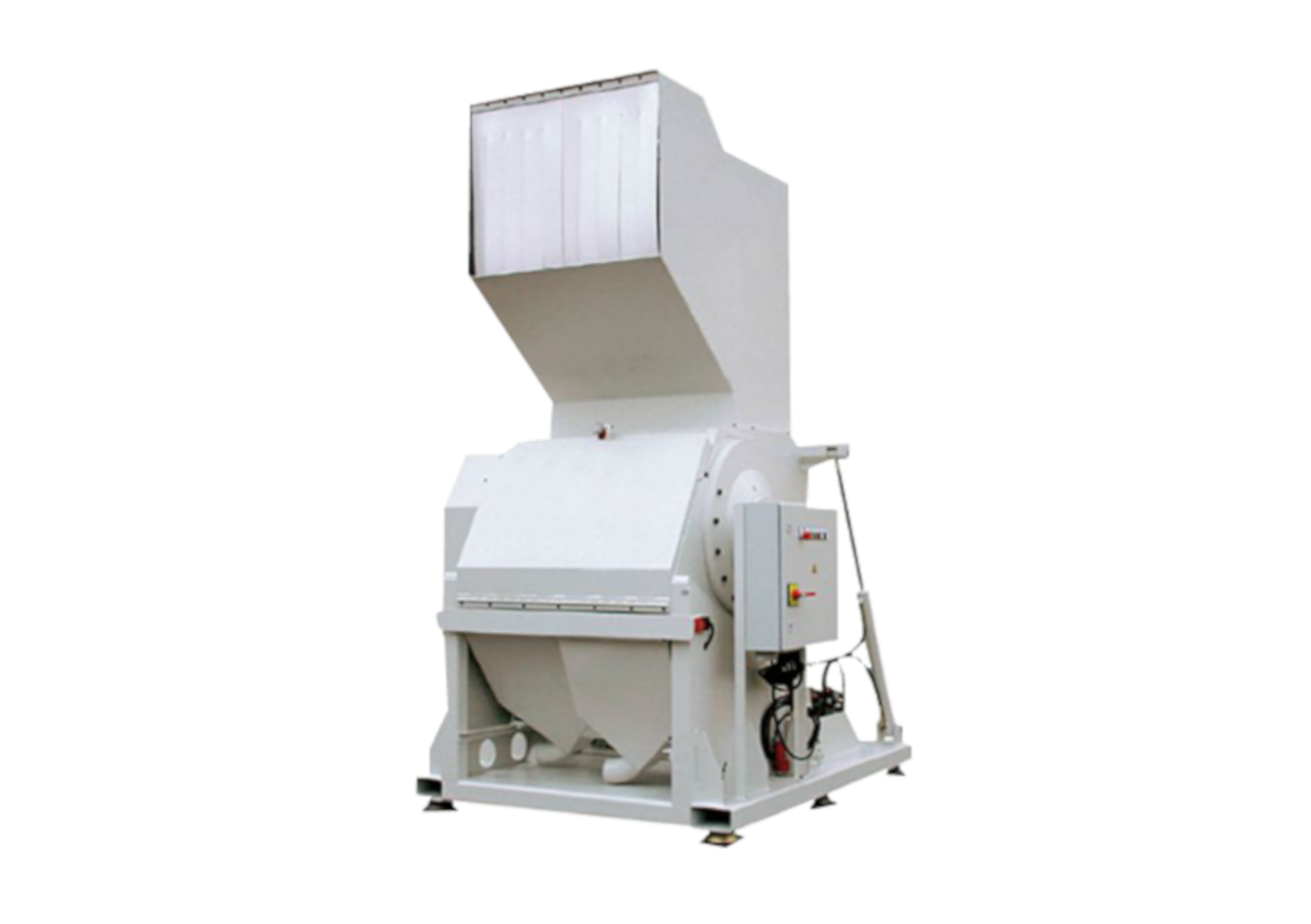

DIS 600/1000

The intimus DIS 600/1000 is a flexible and readily adaptable shredding solution, capable of handling a variety of paper and plastic media in the form of paper documents, printed valuables such as banknotes or passports, magnetic media such as plastic cards or floppy disks as well as optical media such as CDs or DVDs.

Shred size can be adjusted based upon how sensitive the data contained on the media, producing larger or smaller shreds as necessary. With conventional shredder technology, this means that the cutting shafts become more and more delicate and thus are also more prone to damage and wear. The disintegrators meet the current trend to higher security requirements for industrial users and the demand for the highest security for governmental locations and banknote printing works at high throughput rates.

  • Security level determinable through screen mesh diameter; DIN levels 3 to 7
  • Clearly arranged operating panel
  • Solid sheet steel housing with evacuation from hopper
  • 1,000 mm feed opening; suitable for all standard computer formats and DIN format A0
  • Long operational life: Knives can be re-sharpened several times
  • Service-friendly through easy access milling chamber

Specyfikacja

Model
DIS 150/230
DIS 200/410
DIS 260/410
DIS 300/450
DIS 300/600
DIS 600/1000
Wymiary ścinki
230 x 150 mm
410 x 200 mm
410 x 200 mm
450 x 350 mm
600 x 350 mm
1,000 x 600 mm
Szerokość wejścia
-
-
-
-
-
-
Klasa bezpieczeństwa DIN66399
-
-
-
-
-
-
Szybkość cięcia
-
-
-
-
-
-
Wydajność

55 kg/h

150 kg/h

275 kg/h

360 kg/h

500 kg/h

1,250 kg/h

Niszczy również
niszczy1
niszczy1
niszczy1
niszczy1
niszczy1
niszczy1
rodo
-
-
-
-
-
-
Zasilanie
-
-
-
-
-
-
Silnik
-
-
-
-
-
-
Głośność pracy
70 dBA
70 dBA
70 dBA
70 dBA
70 dBA
70 dBA
Liczba ostrzy
rotor - 3
stator - 2
rotor - 5
stator - 2
rotor - 5
stator -2
rotor - 5
stator - 2
rotor - 5
rotor - 2
rotor - 7
rotor - 2
Układ noża
pojedyncze cięcie ukośne
pojedyncze cięcie ukośne
pojedyncze cięcie ukośne
podwójne cięcie ukośne
podwójne cięcie ukośne
podwójne cięcie ukośne
Wymiary
53 x 90 x 124 cm
88 x 115 x 150 cm
88 x 115 x 150 cm
112 x 129 x 206 cm
127 x 129 x 206 cm
169 x 210 x 321 cm
Waga
-
-
-
-
-
-
